Screw Press/ Sludge Dehydrator，Sludge dewatering treatment

Screw Press/ Sludge Dehydrator

The stack screw type sludge dewatering machine belongs to the screw press dewatering machine, it can reduce the sedimentation tank and the sludge concentration pool,and save the construction cost of the sewage station. The double screw type sludge dewatering machine is a new type of solid liquid separation device, which can replace the traditional filter, and the filter technology is used to ensure the continuous and stable slurry separation.

Key Attributes

Model	Power(KW)	Wash with water pressure(kpa)	Clean water(L/h)	Sludge processing(m³/h)	Processing(kg.Ds/h)
DT101	0.2	0.1-0.2	24	2-0.15	3-6
DT102	0.2	0.1-0.2	48	4-0.25	6-12
DT103	0.2	0.1-0.2	72	6-0.35	9-18
DT201	0.8	0.1-0.2	32	7-0.4	10-20
DT301	0.8	0.1-0.2	40	17-1.2	30-50

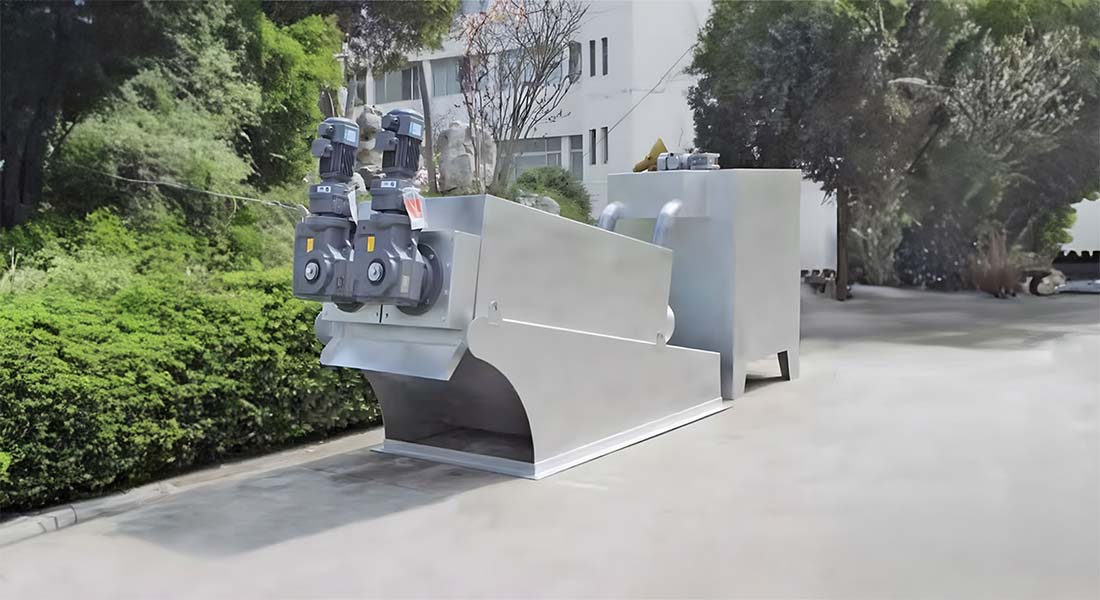

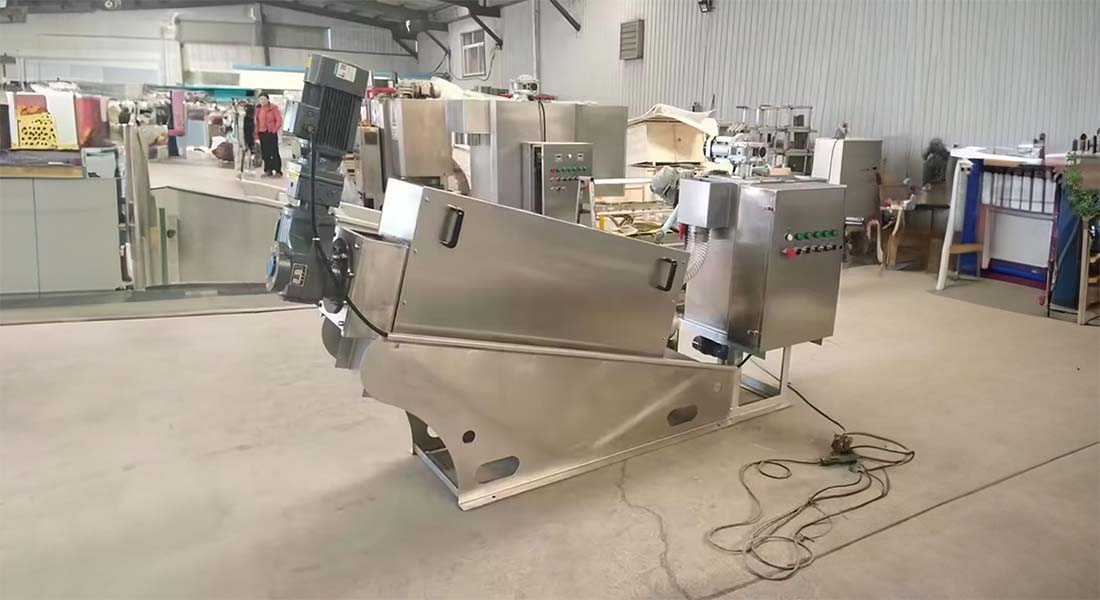

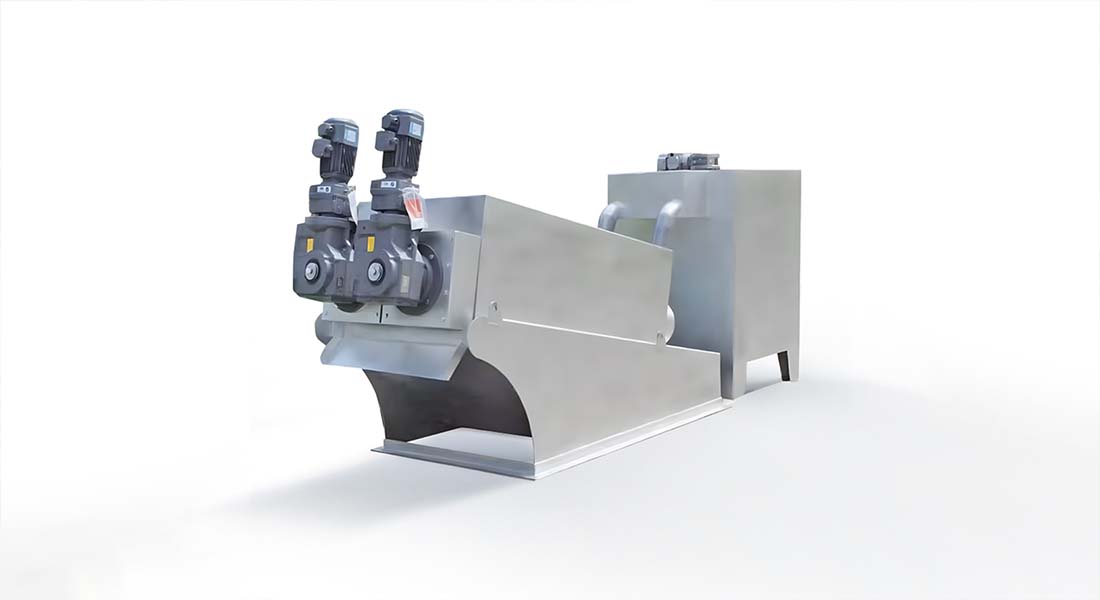

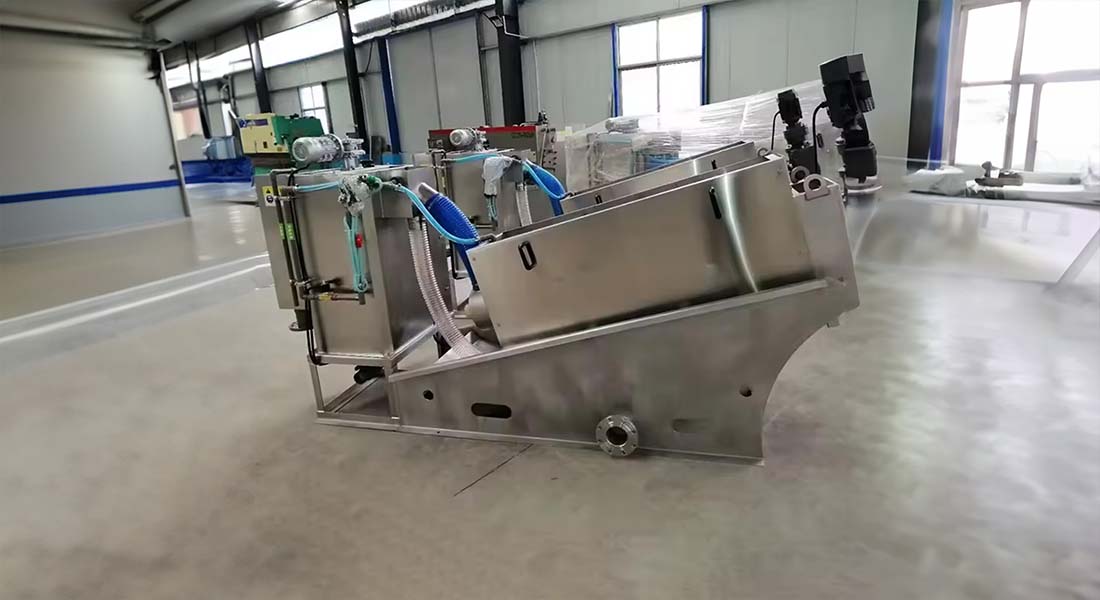

Product Display

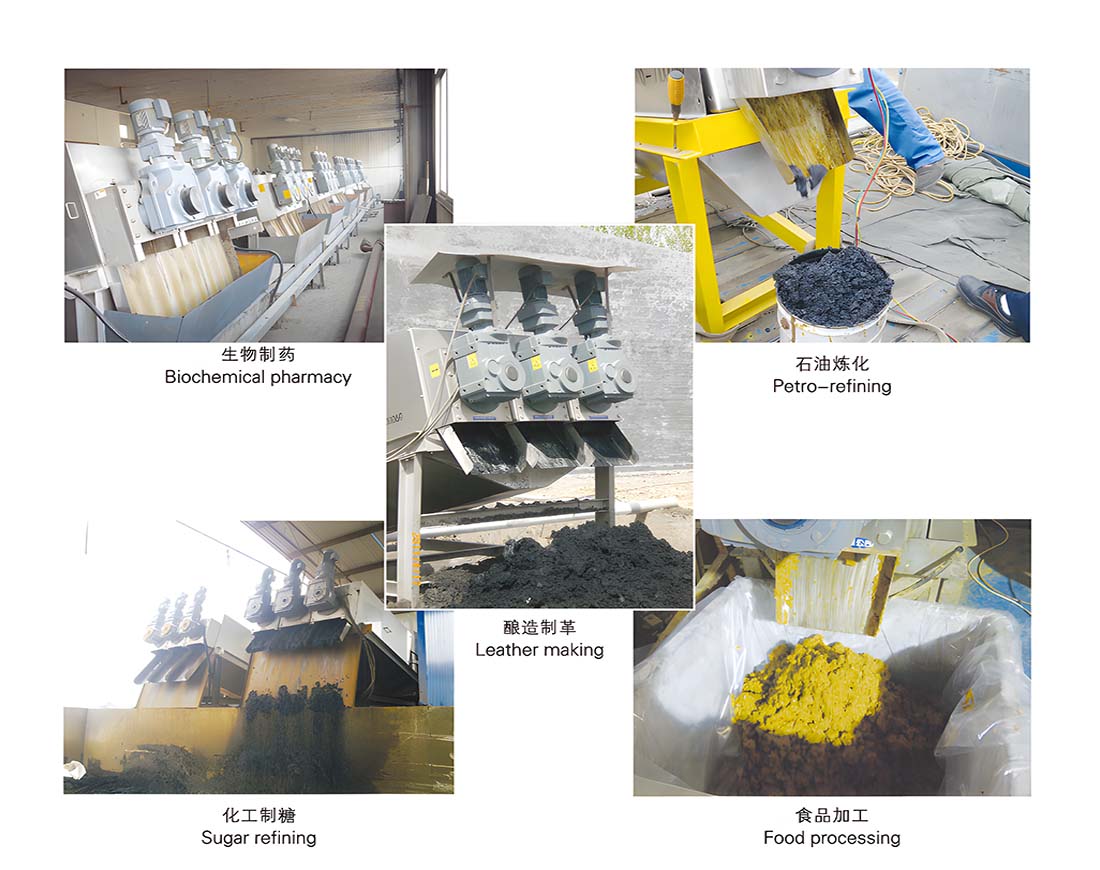

Application

1 suitable for municipal wastewater, food, beverage, chemical, leather, paper, printing and dyeing, welding materials, pharmaceutical and other industries of sludge.

2 suitable for high and low concentration of sludge dehydration.

Not construction concentrated pool and storage pool in low concentrations(2000mg/L~) of sludge dehydration, reduce construction cost and reduce the phosphorus release and anaerobic odor.

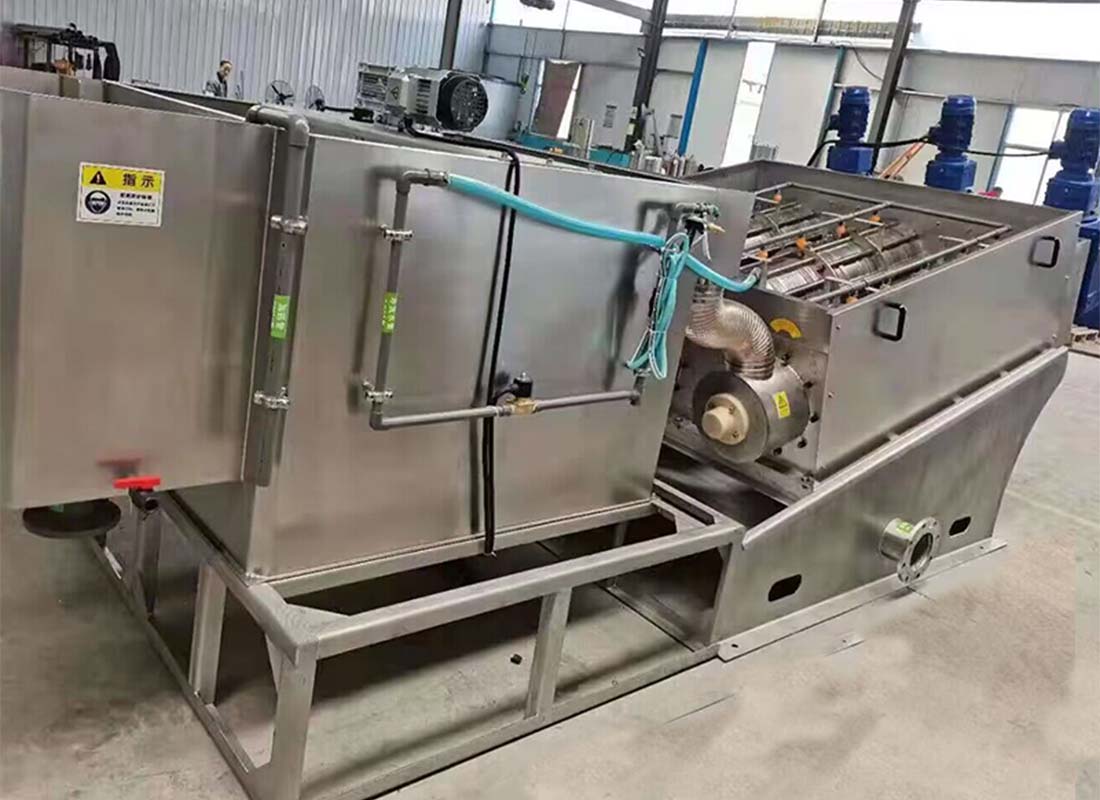

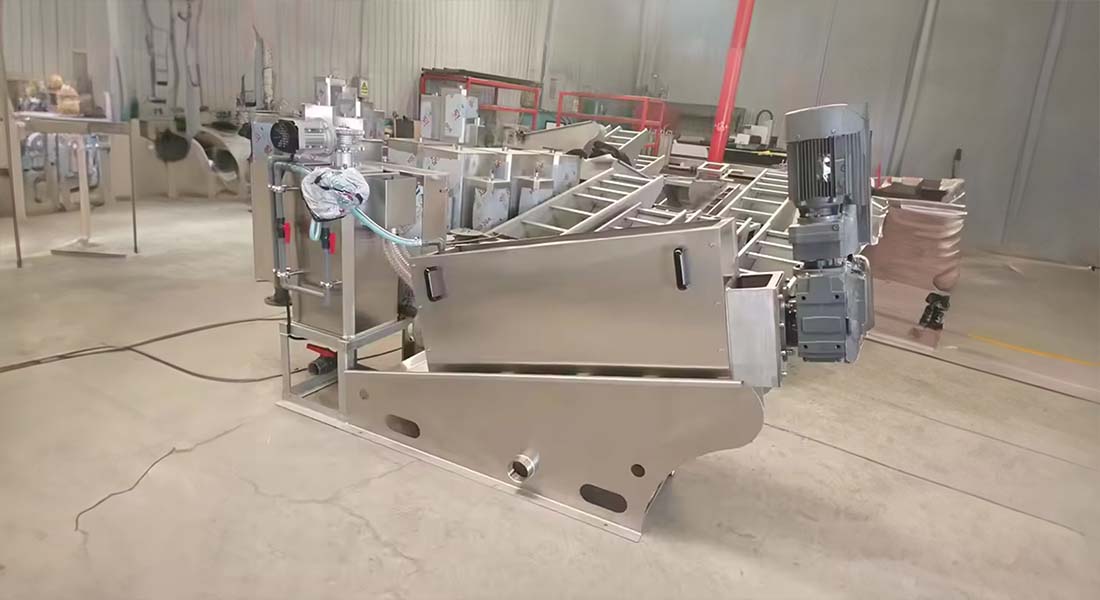

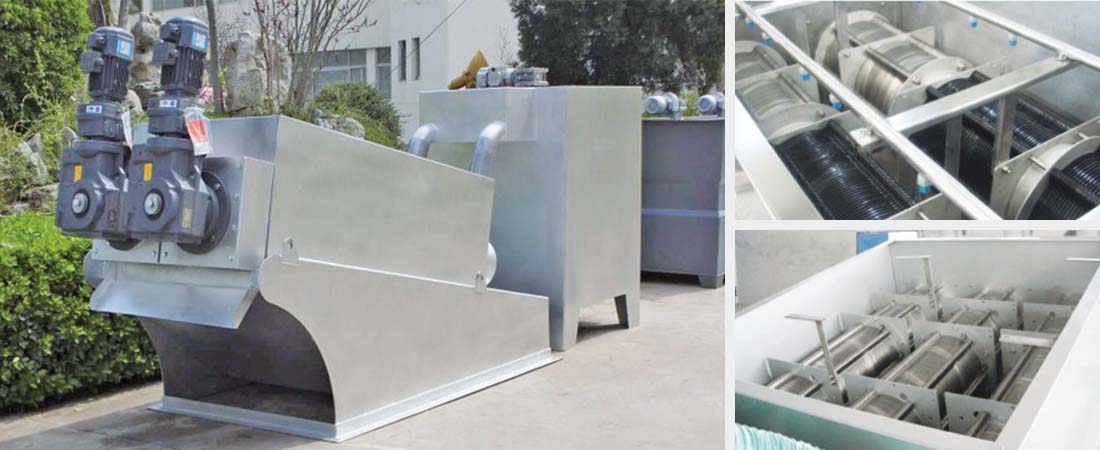

Detailed Images

Simple processing, low investment system, energy-efficient in dewateringpharmaceutical and other industries of sludge.

System can be programmed to make the operation more convenient and accurate

Unique flocculating agent make sludge dewatering easier

Uniform and accurate dispensing, saving costs
