Lamella clarifier(AUXB),Wastewater treatment plant

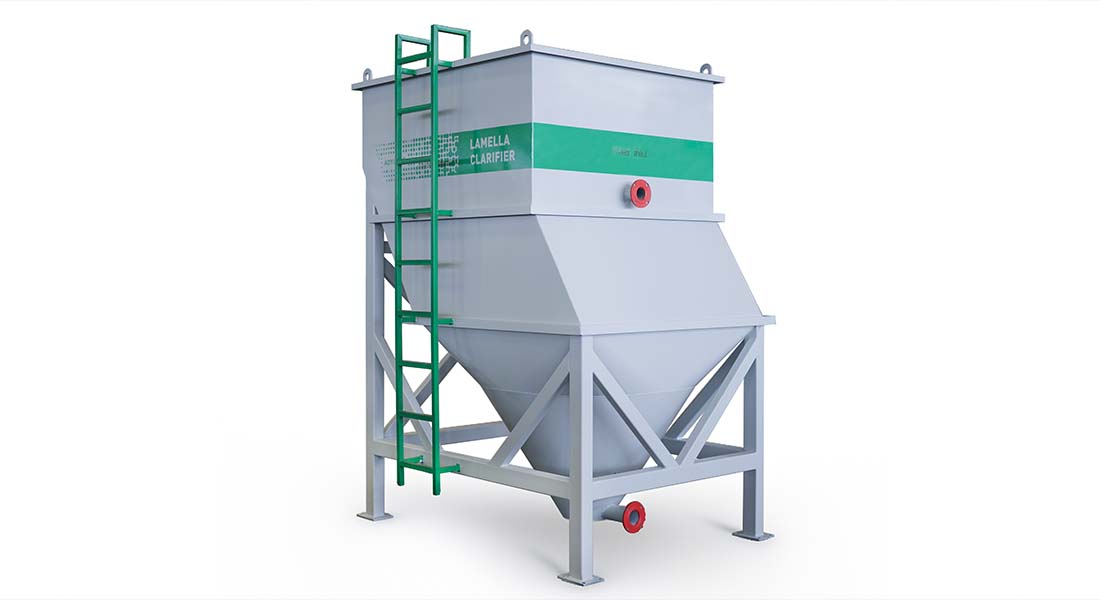

Lamella clarifier(AUXB)

The lamella settler is a device mainly used in water separation to remove solid from water by means of gravity. Because of the Lamella technology, a Lamella Settler with minimum 20% footprint of a conventional one is still capable of processing the same water amount. This technology based on Shallow Tank Theory uses inclined plates to separate solid from water flow, reaching a high separation rate. The sludge cohered to plates will slope down to the conical bottom for further dewatering and concentrating, while the upper flow clean water is collected by the container above.

Key Attributes

Model	Capacity(m3/h)	Size(mm)	Volume (m3)	Weight (T)
AUXB10	10	250015002500	7.5	1
AUXB20	20	500015002500	15	2
AUXB40	40	650020002500	30	3.2
AUXB50	50	800020002500	37.5	4.5
AUXB80	80	950025002750	60	5.2
AUXB100	100	1200025002750	1	6

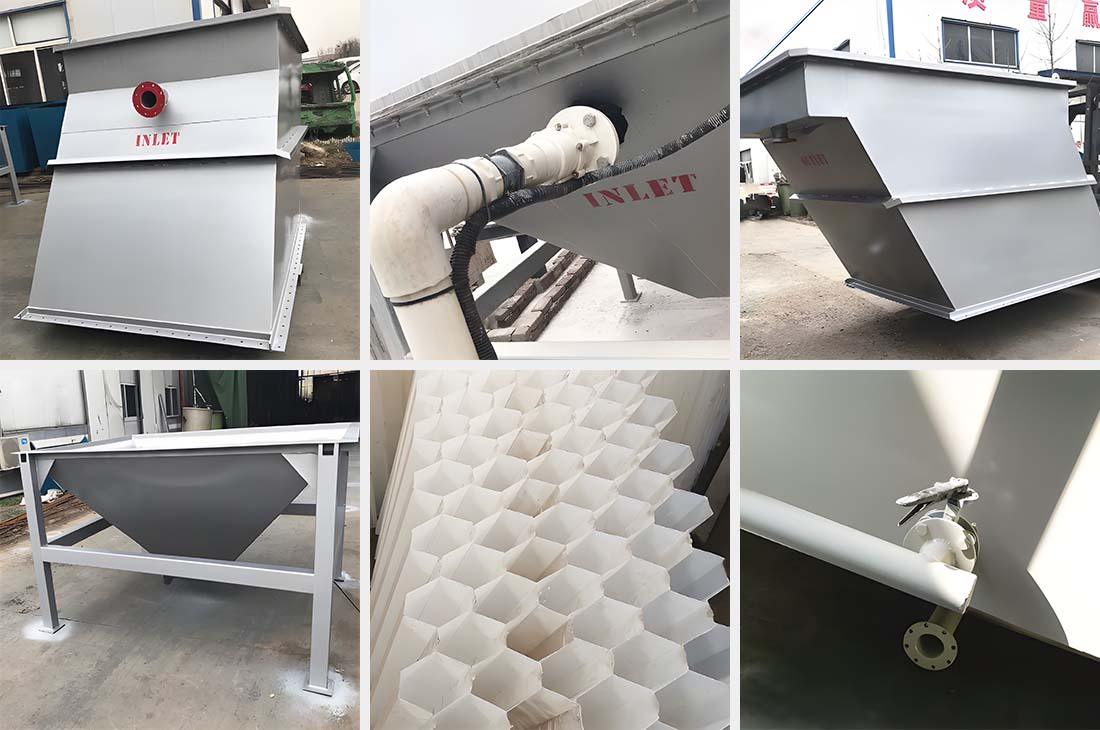

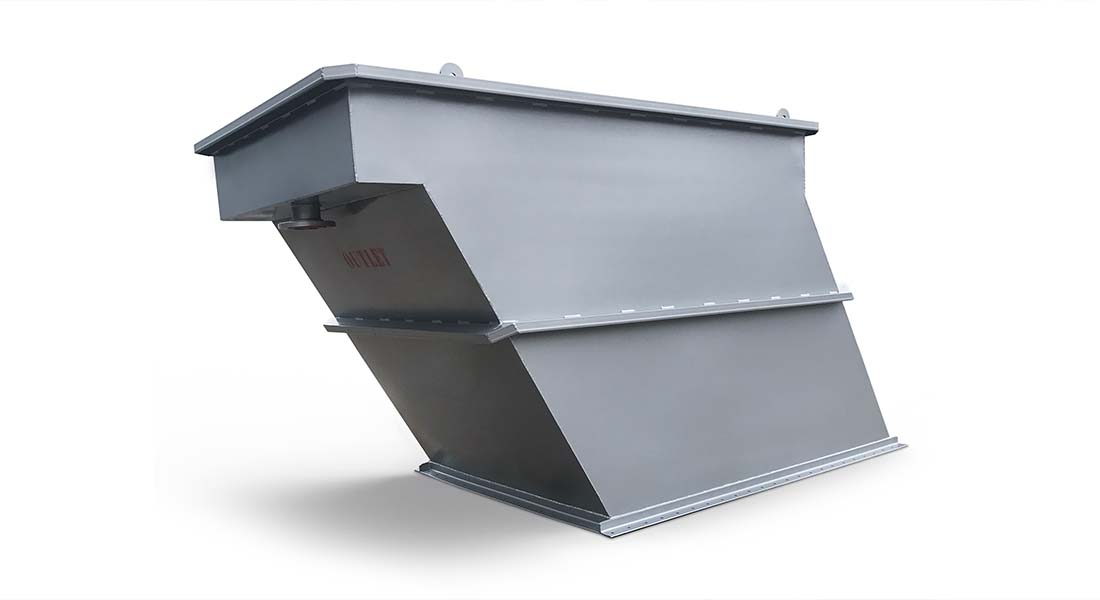

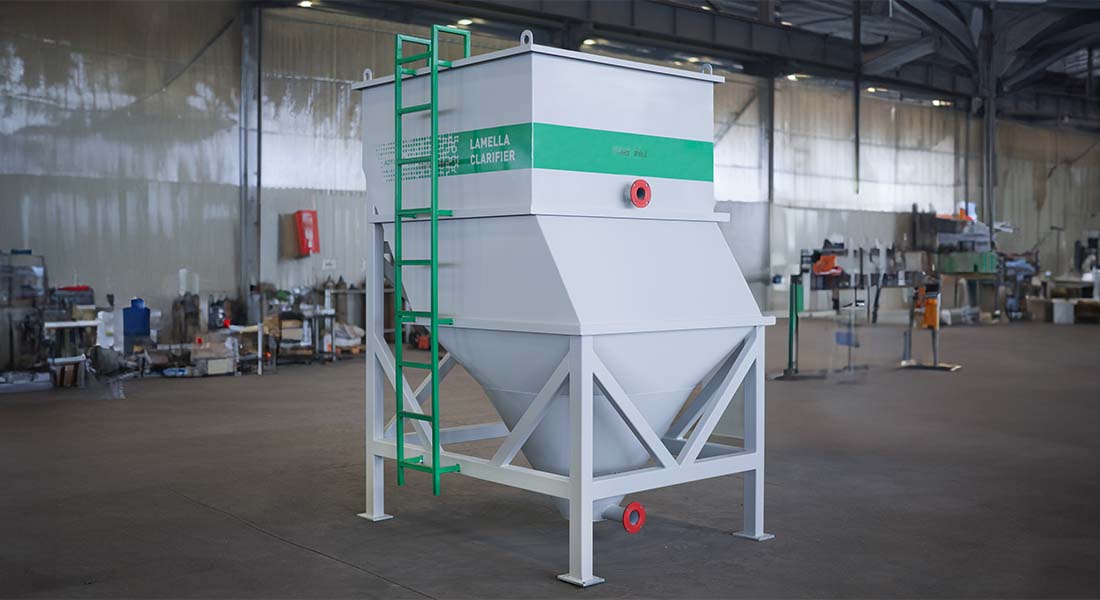

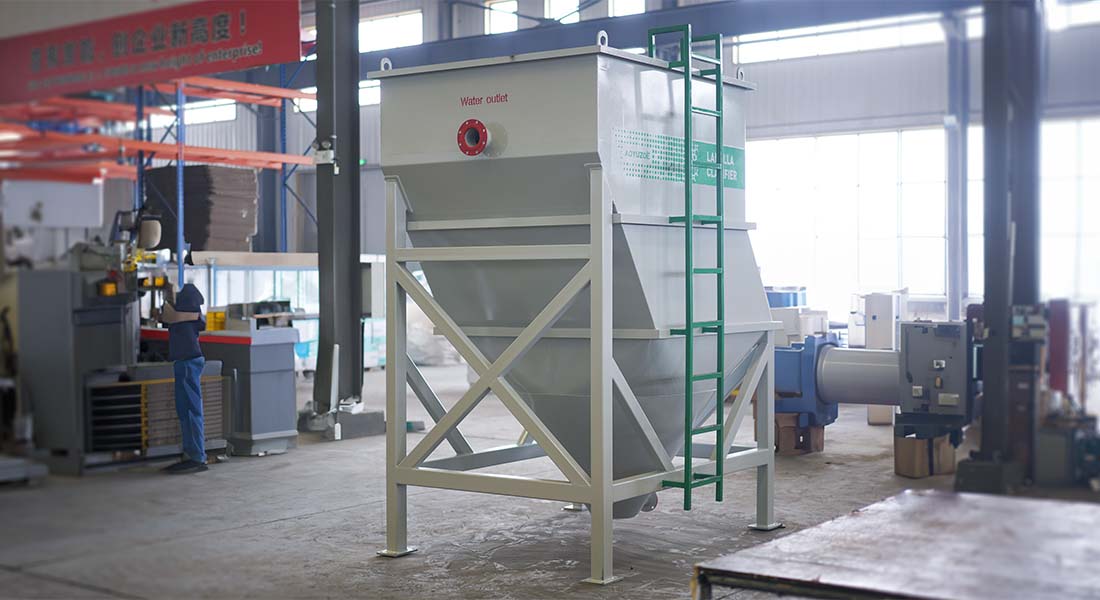

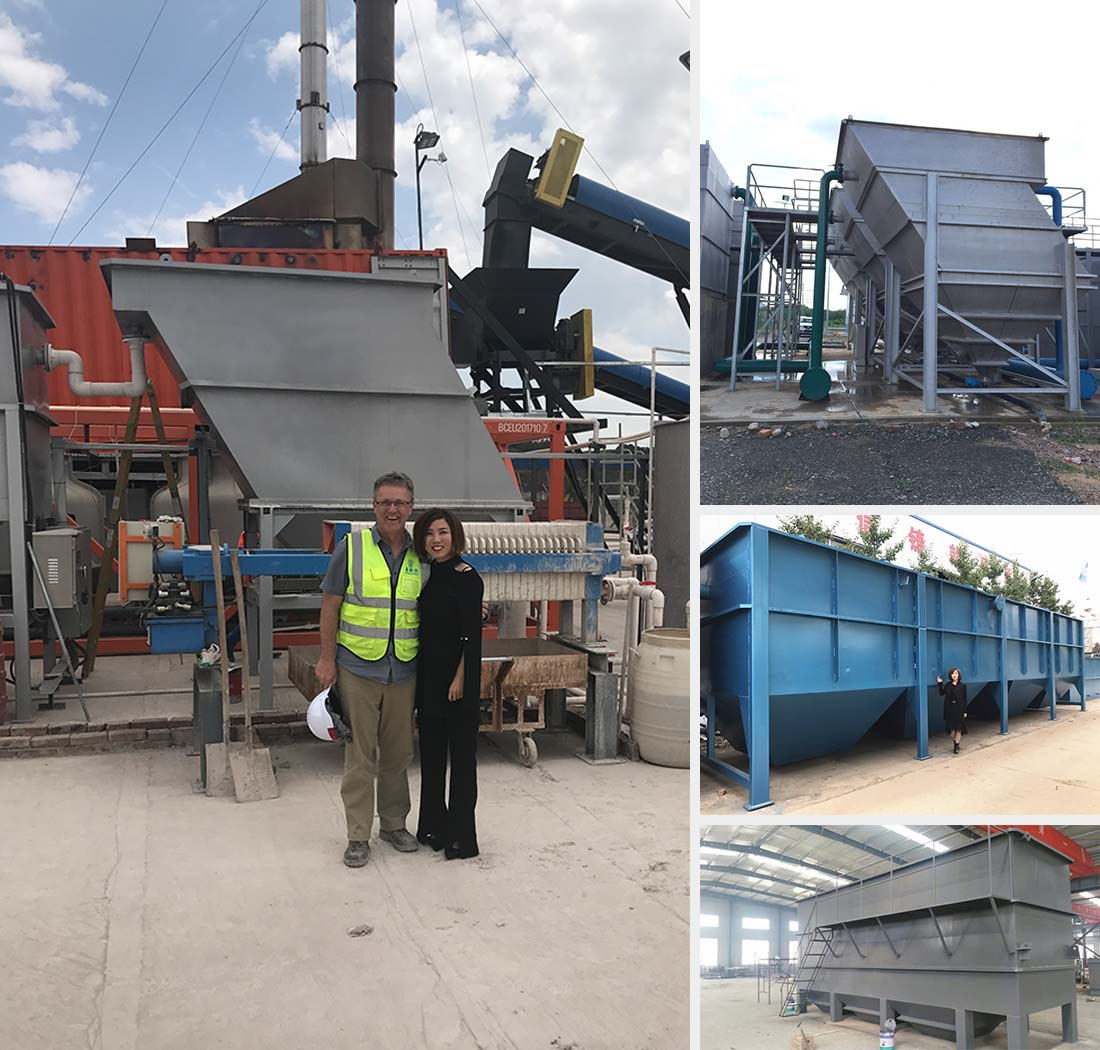

Product Display

Application

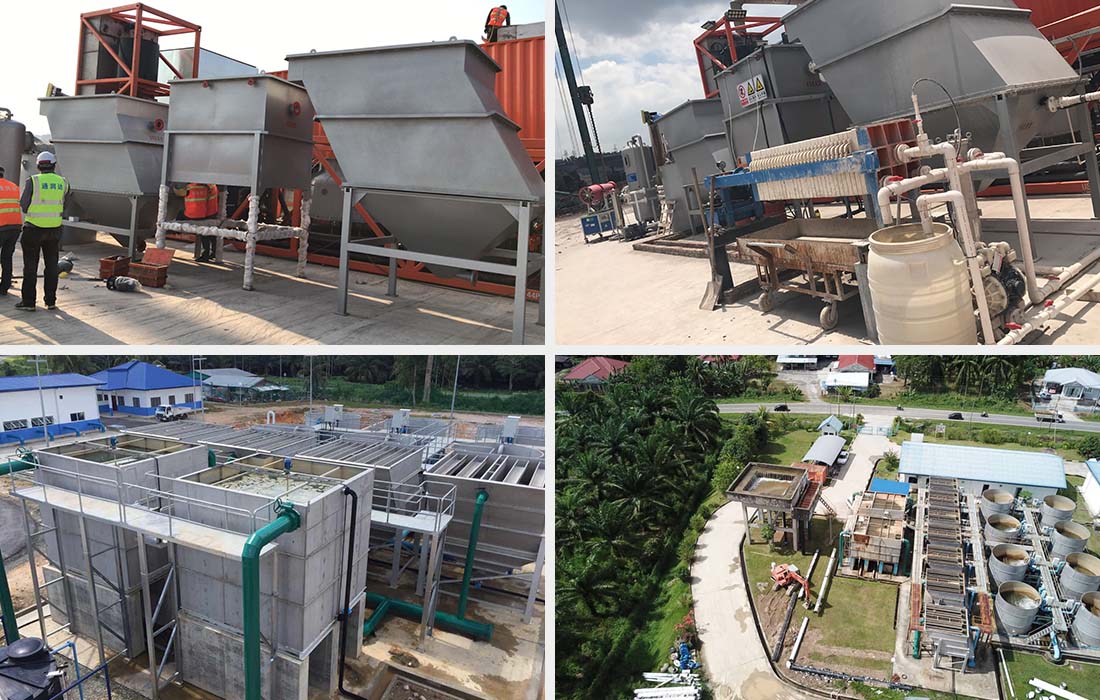

Lamella clarifier can be used in the treatment of industrial wastewater, surface water, reused water.

It could remove SS, oil/grease and parts of COD/BOD

* Pulp & paper

* Electroplating

* Metal processing

* Muddy water

* Coal slurry

* Crystal grinding wastewater

* River water

Equipment Features

1Capacity 5-120m3/ h.

2Efficient treatment of high concentrations of solid waste water (grit, clay, lime, metal particles).

3The smallest floor area , maximum capacity

4Install both in indoors and outdoors (but the ambient temperature needs above 0 °C).

5Slope sedimentation tank can create a good laminar flow environment, to achieve better precipitation effect

6Intensive design, minimize the hydraulic interference caused by wind or temperature changes

7Suitable for on-site unattended automatic continuous operation.

8Life time of carbon steel material> 10 years; Life time of stainless steel material> 20 years.
