AUFS-50W/100W series medical waste incinerator

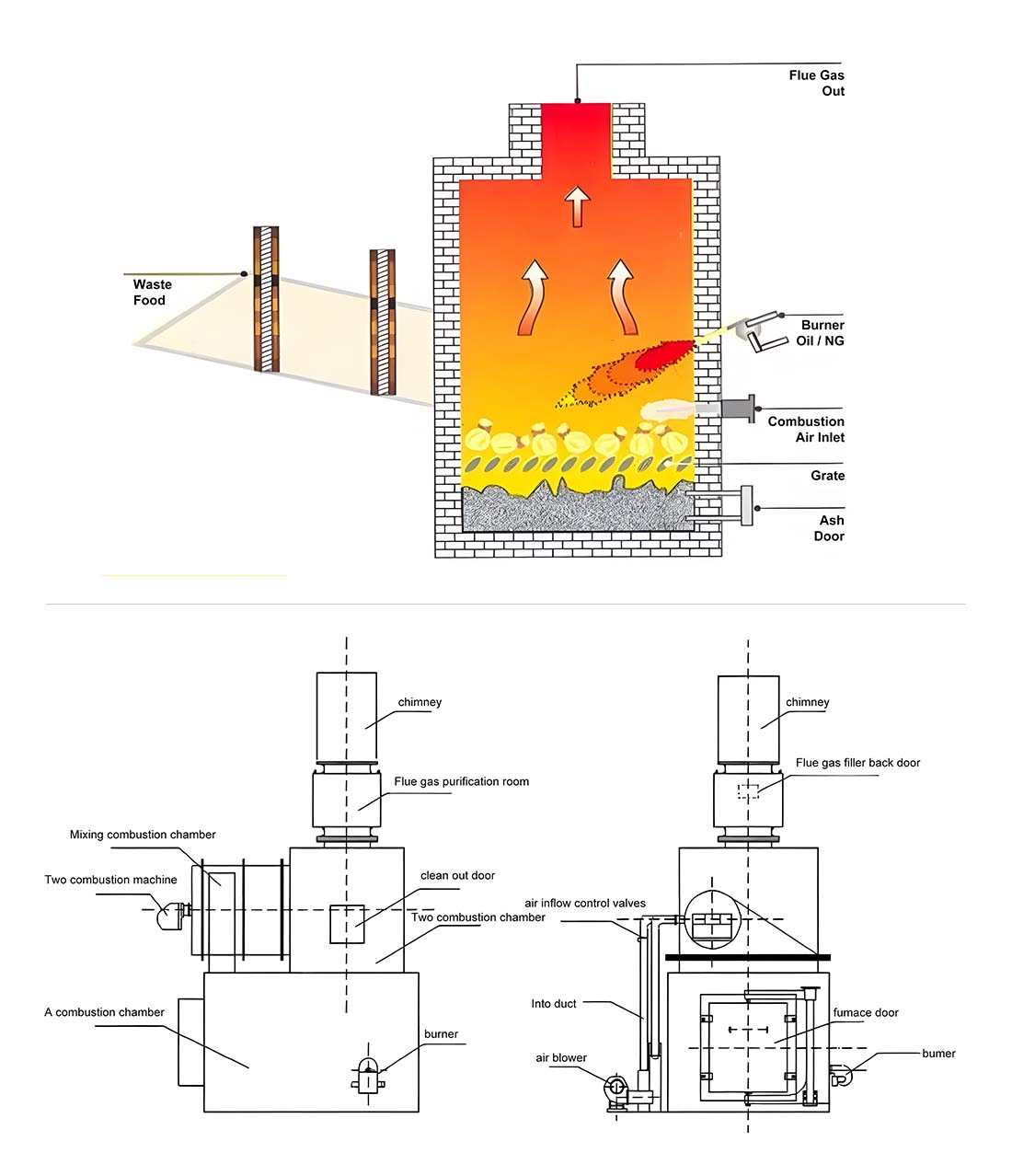

AUFS-50W/100W series is our small and medium-size incinerator, it is wet treatment equipment, which can be used in a variety of medical institutions. The burning smoke produced after two times of combustion of medical waste will pass through the Venturi tube spray system, Pal ring packing tower, cyclone dust removal system. The smoke residence time is >2s, so that the flue gas purification to meet the national emission standards, and is then discharged to the atmosphere.

TYPICAL APPLICATIONS: • Health Clinics • Sanitary Waste • Covid-19/PPE • Mobile Health Clinics • Vaccination Centres • Small and Medium-size hospital

Key Attributes

OPERATIONAL SPEC	AUFS-50W	AUFS-100W
Incineration capacity	50kg/h	100kg/h
Floor space	6000mm × 3000mm × 2500mm	8000mm × 5000mm × 2800mm
Volume of incinerator	gasification 0.6m3, secondary burning room 0.3m3 drift along burning room 0.04m3	gasification 1.2m3, secondary burning room 0.6m3 drift along burning room 0.06m3
Size of Furnace door (customizable)	620mm × 800mm	700mm × 900mm
Chimney	height 12m, outer diameter ф330mm	height 12m, outer diameter ф400mm
Combustion booster	power 0.11kw, fuel consumption 6-10 kg/h	power 0.11kw, fuel consumption 6-10 kg/h
Re-combustion bumer	power 0.18kw, fuel consumption 7-14 kg/h	power 0.18kw, fuel consumption 10-20 kg/h
Running-voltage	220v / 50Hz or 380v / 50Hz	220v / 50Hz or 380v / 50Hz / 60Hz
Weight(kg)	about 6000	about 8700
Blower	0.55kw	0.75kw
Induced draft fan	3.0kw	3.0kw
Circulating water pump	2.2kw	2.2kw

OPERATIONAL SPEC	AUFS-50W	AUFS-100W
Incineration capacity	50kg/h	100kg/h
Floor space	6000mm × 3000mm × 2500mm	8000mm × 5000mm × 2800mm
Volume of incinerator	gasification 0.6m3, secondary burning room 0.3m3 drift along burning room 0.04m3	gasification 1.2m3, secondary burning room 0.6m3 drift along burning room 0.06m3
Size of Furnace door (customizable)	620mm × 800mm	700mm × 900mm
Chimney	height 12m, outer diameter ф330mm	height 12m, outer diameter ф400mm
Combustion booster	power 0.11kw, fuel consumption 6-10 kg/h	power 0.11kw, fuel consumption 6-10 kg/h
Re-combustion bumer	power 0.18kw, fuel consumption 7-14 kg/h	power 0.18kw, fuel consumption 10-20 kg/h
Running-voltage	220v / 50Hz or 380v / 50Hz	220v / 50Hz or 380v / 50Hz / 60Hz
Weight(kg)	about 6000	about 8700
Blower	0.55kw	0.75kw
Induced draft fan	3.0kw	3.0kw
Circulating water pump	2.2kw	2.2kw

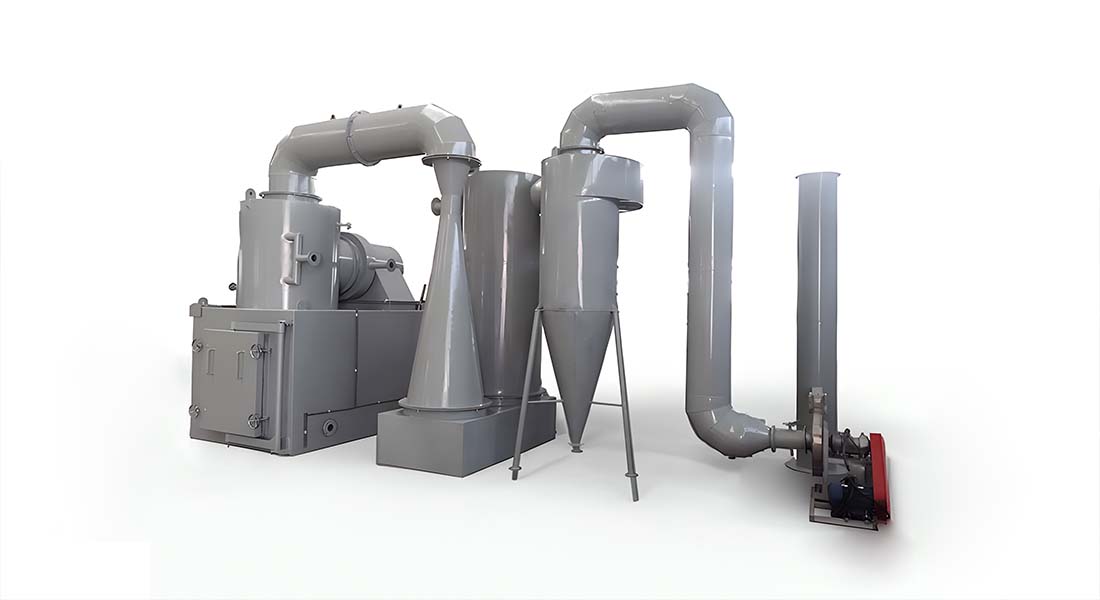

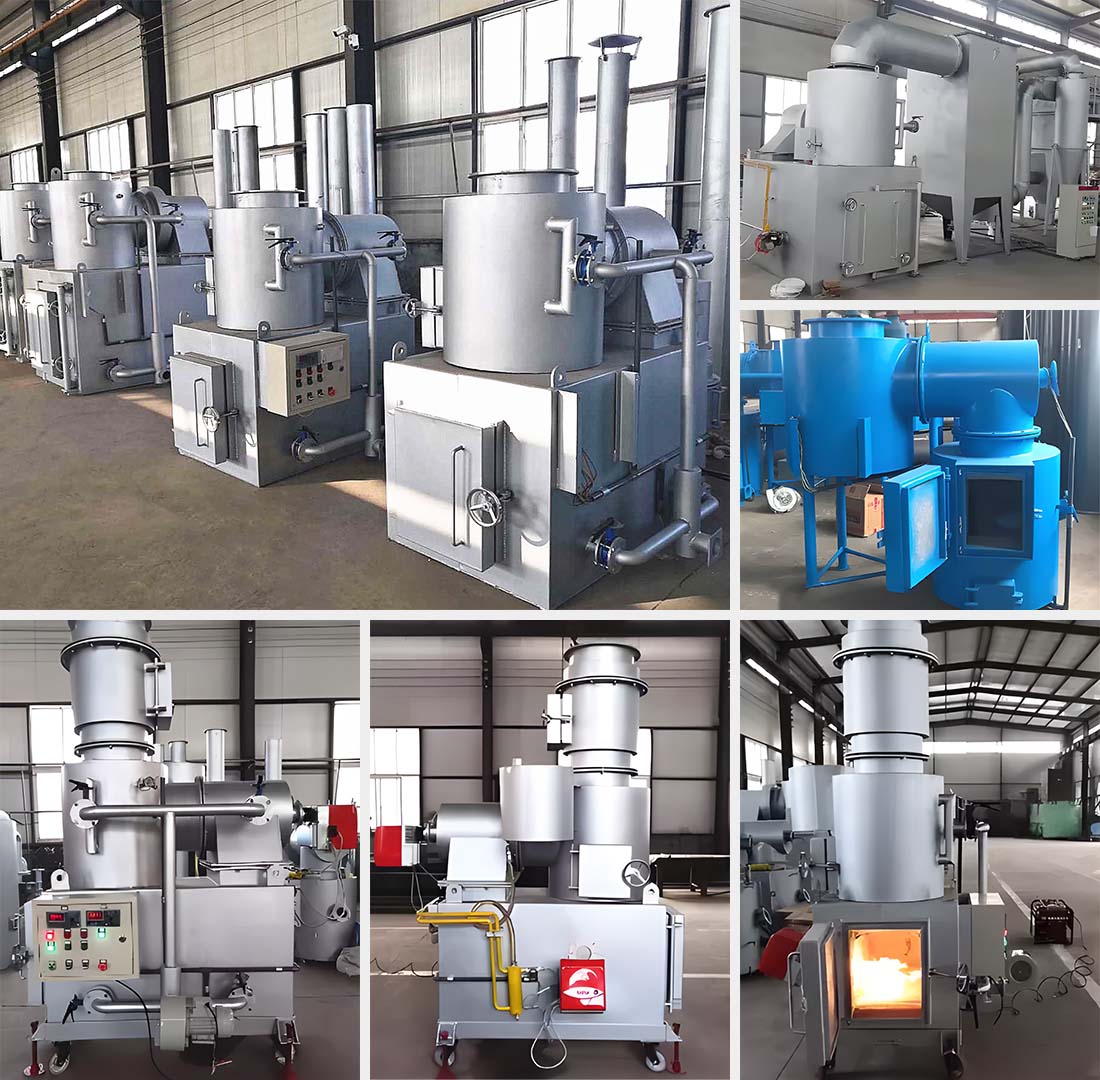

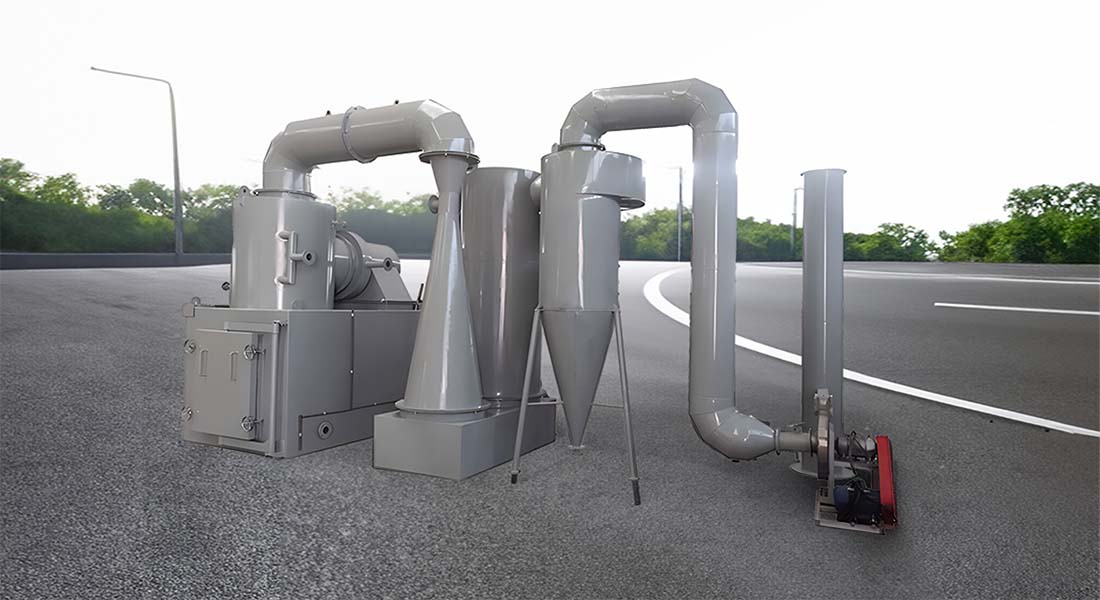

Product Display

Advantages

1 The gasifying incineration technology to be applied to the incineration injector, feeding container and other medical equipment as well as different paper slash, bandage, cotton column, different kinds of medical pollutants and various wastes discharged by hospitals and medical organization.

2 The gasifying incineration way is utilized and the rubbished produced each day is able to handle the one-off incineration treatment.

3 The gasifying incineration, mixed incineration, burn-out treatment and other technologies are used to make the content of the smog exhaust and dust lower than the discharge standard regulated by the nation.

4 Fully seal operation is adopted to be applied to dealing with the infectious medical waste and avoid the secondary pollution.

5 Small volume and site area.

6 The series of incinerator are divided into the fuel and gas kind which can be selected according to the different needs of the users.

Application

1 Industrial waste (polymer waste): Plastic PE, PU, rubber (tire), Styrofoam, PET bottle, fiber, foam, cloth, resin, acrylic, leather, Wood flour, urea powder, melon cloth, tapes, paints, polymers and so on.

2 Medical waste: syringes, gloves, straps, gauze, blood vessels, organs and other infectious waste.

3 General garbage: cardboard, paper scraps, sawdust, leaves and so on.

4 Special waste: waste oil, waste solvents, sludge, ash dust, iron paint, mold filter residue and so on.
