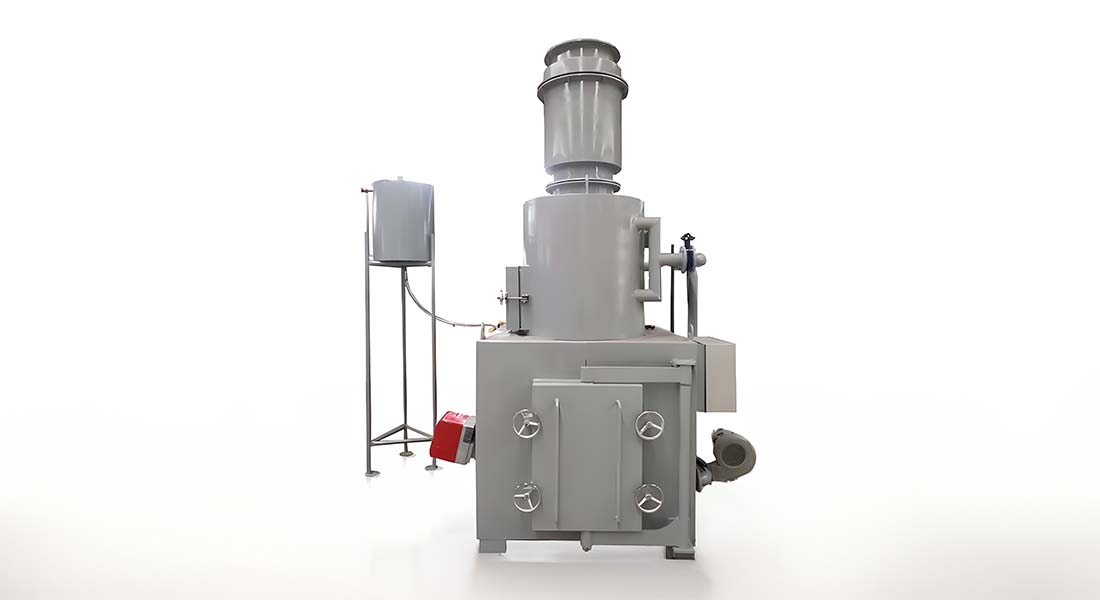

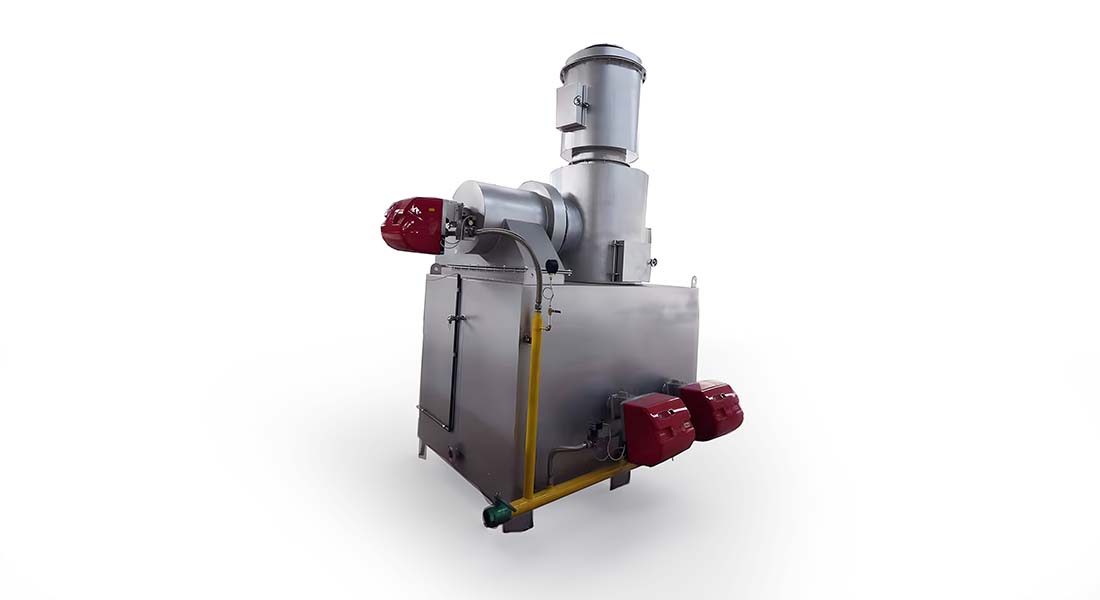

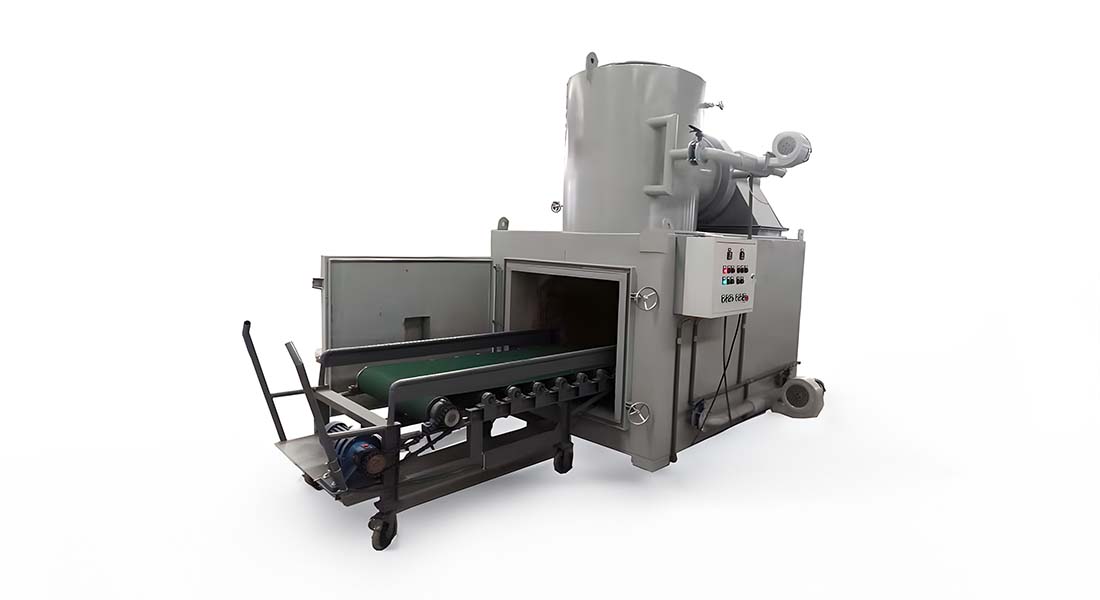

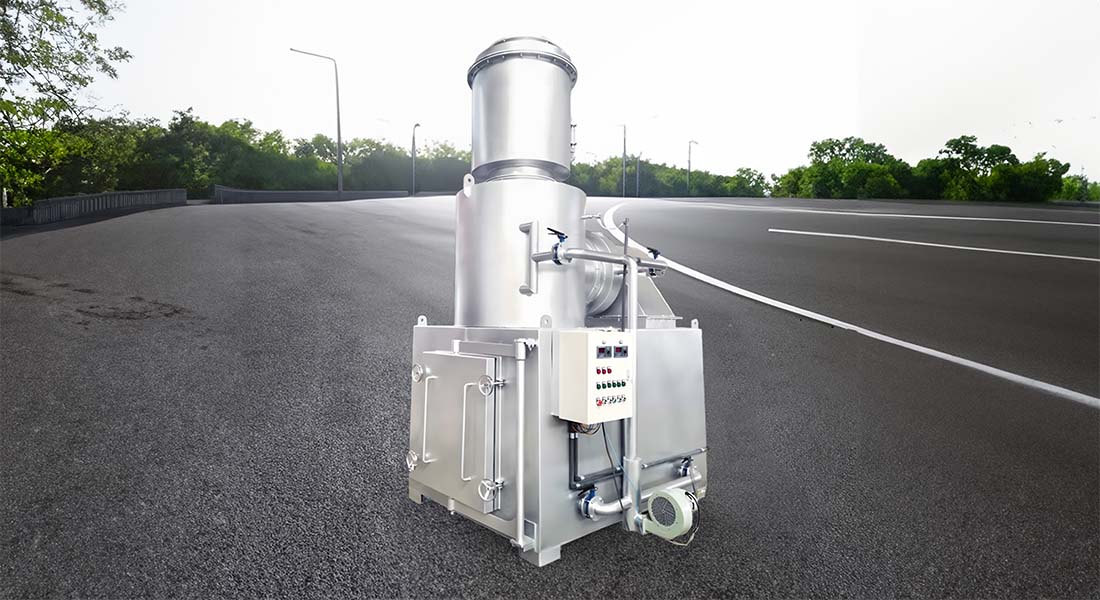

AUFS-150/200/300/500 series medical waste incinerator

AUFS-150/200/300/500 series incinerator is a relatively large incinerator. The furnace volume is large, the furnace door adopts the design of child button, the furnace door size is wide, and the large volume of garbage can be put into the furnace at one time.There are four combustion chambers with double fans to send oxygen, and the amount of garbage is large. Fuly enclosed negative pressure operation, can avoid secondary pollution with its reasonable layout and small footprint. tI is the ideal product for large hospitals, pharmaceutical factories and Medium-size and larger-size hospital.

TYPICAL APPLICATIONS:
• Health Clinics • Sanitary Waste • Covid-19/PPE • Mobile Health Clinics • Vaccination Centres • Medium-size and larger-size hospital

Key Attributes

OPERATIONAL SPEC	AUFS-150	AUFS-200	AUFS-300	AUFS-500
Incineration capacity	100- 150kg/times	150- 200kg/times	200- 300kg/times	400- 500kg/times
Size of incinerator	2200mm × 1500mm × 3500mm	2300mm × 1600mm × 3500mm	2400mm × 1600mm × 3800mm	3000mm × 2000mm × 4800mm
Volume of incinerator	gasification 1.5m3, secondary burning room 0.7m3 drift along burning room 0.1m3	gasification 2.0m3, secondary burning room 0.9m3 drift along burning room 0.12m3	gasification 2.4m3, secondary burning room 1.2m3 drift along burning room 0.16m3	gasification 4.0m3, secondary burning room 1.5m3 drift along burning room 0.3m3
Blower	0.75kw	0.75kw	1.1kw	No1 0.75KW, No2 0.75 KW
Chimney	height 10m, outer diameter ф360mm	height 10m, outer diameter ф360mm	height 10m, outer diameter ф400mm	height 12m, outer diameter ф460mm
Combustion booster	power 0.11kw, fuel consumption 6-10 kg/h	power 0.11kw, fuel consumption 6-10 kg/h	power 0.18kw, fuel consumption 10-20 kg/h	power 0.18kw, fuel consumption 10-20 kg/h
Re-combustion bumer	power 0.18kw, fuel consumption 10-20 kg/h	power 0.18kw, fuel consumption 10-20 kg/h	power 0.25kw, fuel consumption 15-25 kg/h	power 0.37kw, fuel consumption 15-30 kg/h
Running-voltage	220v / 50Hz or 380v / 50Hz / 60Hz	220v / 50Hz or 380v / 50Hz / 60Hz	220v / 50Hz or 380v / 50Hz / 60Hz	220v / 50Hz or 380v / 50Hz
Weight(kg)	about 7500	about 8000	about 9000	about 14000
Size of furnace door	800mm × 1000mm	850mm × 1050mm	900mm × 1100mm	1000mm × 1200mm

OPERATIONAL SPEC	AUFS-150	AUFS-200	AUFS-300	AUFS-500
Incineration capacity	100- 150kg/times	150- 200kg/times	200- 300kg/times	400- 500kg/times
Size of incinerator	2200mm × 1500mm × 3500mm	2300mm × 1600mm × 3500mm	2400mm × 1600mm × 3800mm	3000mm × 2000mm × 4800mm
Volume of incinerator	gasification 1.5m3, secondary burning room 0.7m3 drift along burning room 0.1m3	gasification 2.0m3, secondary burning room 0.9m3 drift along burning room 0.12m3	gasification 2.4m3, secondary burning room 1.2m3 drift along burning room 0.16m3	gasification 4.0m3, secondary burning room 1.5m3 drift along burning room 0.3m3
Blower	0.75kw	0.75kw	1.1kw	No1 0.75KW, No2 0.75 KW
Chimney	height 10m, outer diameter ф360mm	height 10m, outer diameter ф360mm	height 10m, outer diameter ф400mm	height 12m, outer diameter ф460mm
Combustion booster	power 0.11kw, fuel consumption 6-10 kg/h	power 0.11kw, fuel consumption 6-10 kg/h	power 0.18kw, fuel consumption 10-20 kg/h	power 0.18kw, fuel consumption 10-20 kg/h
Re-combustion bumer	power 0.18kw, fuel consumption 10-20 kg/h	power 0.18kw, fuel consumption 10-20 kg/h	power 0.25kw, fuel consumption 15-25 kg/h	power 0.37kw, fuel consumption 15-30 kg/h
Running-voltage	220v / 50Hz or 380v / 50Hz / 60Hz	220v / 50Hz or 380v / 50Hz / 60Hz	220v / 50Hz or 380v / 50Hz / 60Hz	220v / 50Hz or 380v / 50Hz
Weight(kg)	about 7500	about 8000	about 9000	about 14000
Size of furnace door	800mm × 1000mm	850mm × 1050mm	900mm × 1100mm	1000mm × 1200mm

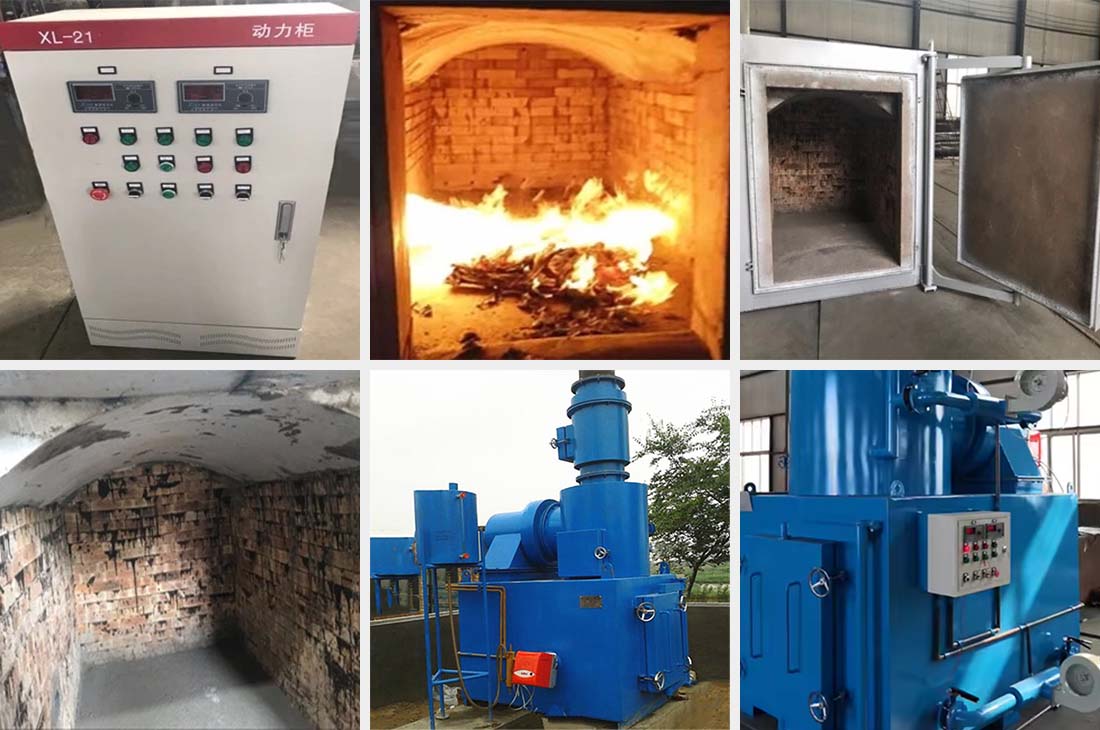

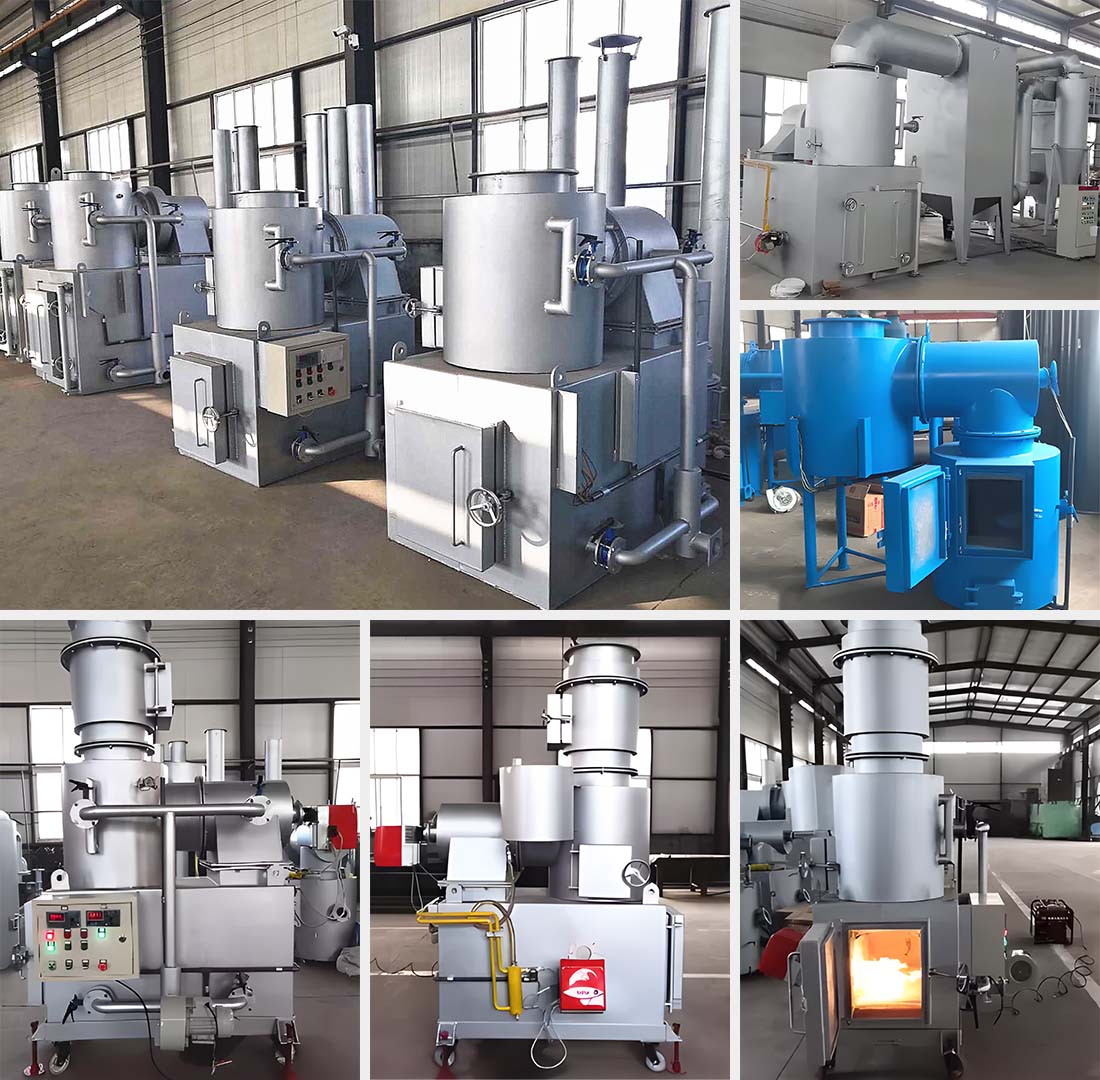

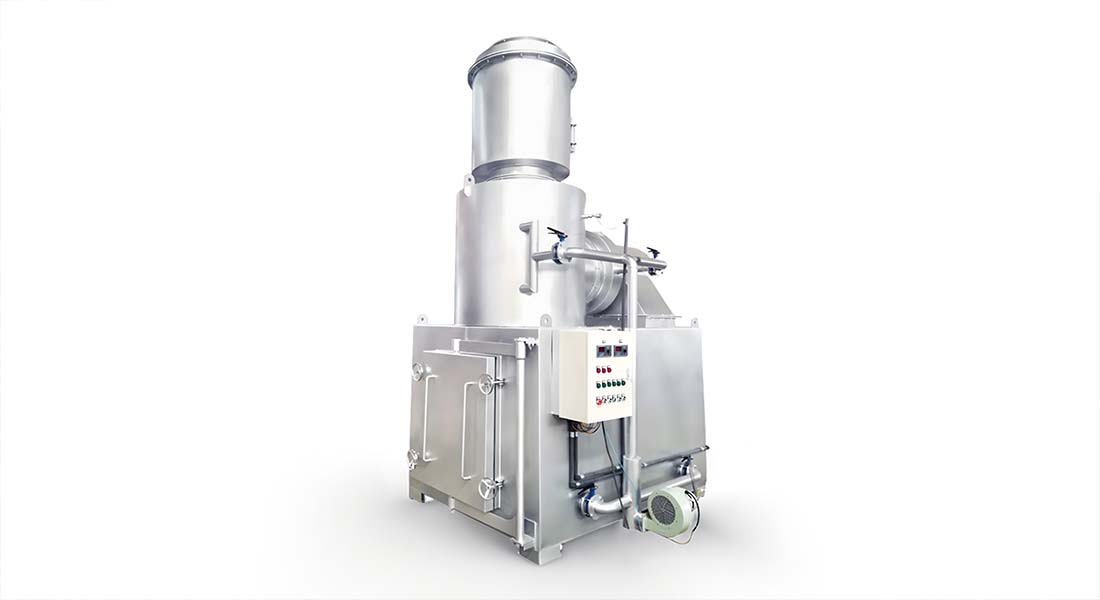

Product Display

Advantages

1 The gasifying incineration technology to be applied to the incineration injector, feeding container and other medical equipment as well as different paper slash, bandage, cotton column, different kinds of medical pollutants and various wastes discharged by hospitals and medical organization.

2 The gasifying incineration way is utilized and the rubbished produced each day is able to handle the one-off incineration treatment.

3 The gasifying incineration, mixed incineration, burn-out treatment and other technologies are used to make the content of the smog exhaust and dust lower than the discharge standard regulated by the nation.

4 Fully seal operation is adopted to be applied to dealing with the infectious medical waste and avoid the secondary pollution.

5 Small volume and site area.

6 The series of incinerator are divided into the fuel and gas kind which can be selected according to the different needs of the users.

Application

1 Industrial waste (polymer waste): Plastic PE, PU, rubber (tire), Styrofoam, PET bottle, fiber, foam, cloth, resin, acrylic, leather, Wood flour, urea powder, melon cloth, tapes, paints, polymers and so on.

2 Medical waste: syringes, gloves, straps, gauze, blood vessels, organs and other infectious waste.

3 General garbage: cardboard, paper scraps, sawdust, leaves and so on.

4 Special waste: waste oil, waste solvents, sludge, ash dust, iron paint, mold filter residue and so on.
