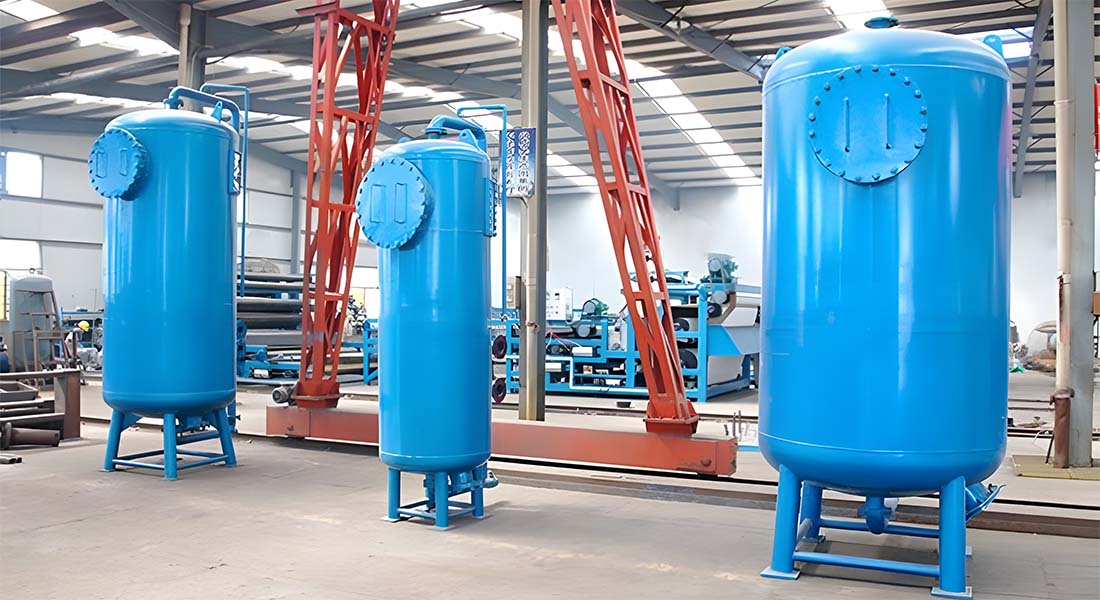

Mechanical Filter(AUMF)

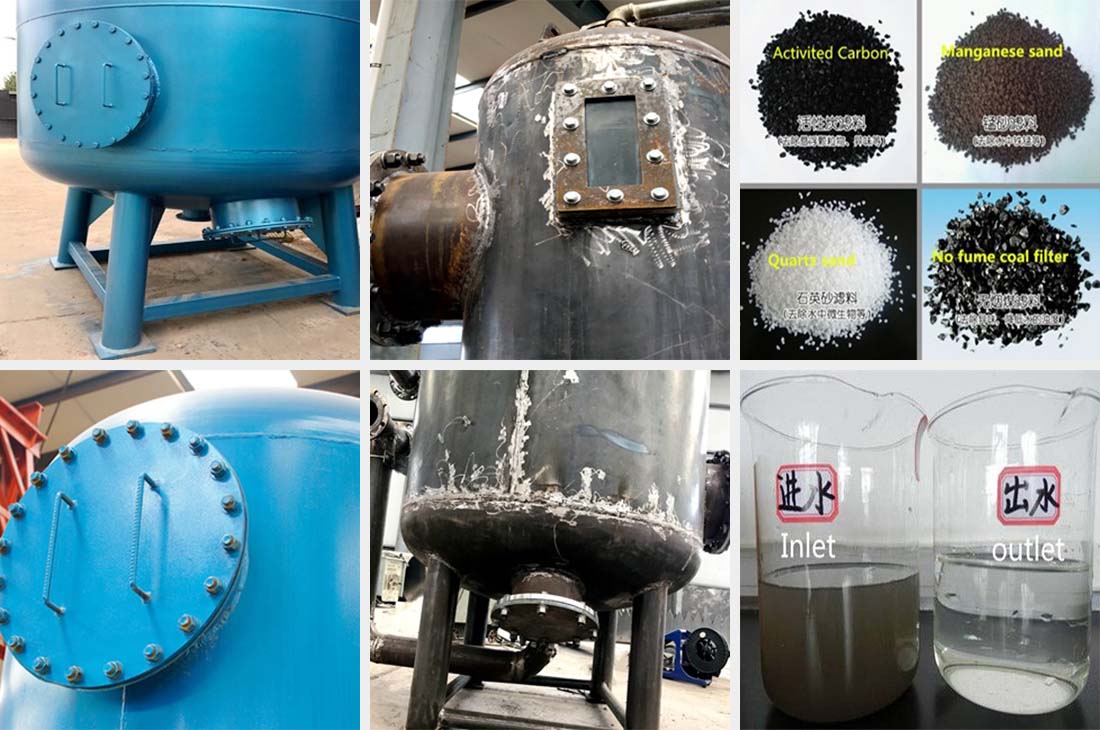

AUMF Series Mechanical Filter is used to reduce the turbidity of the water and purgeaway the suspending matter and dirty .It's the pre-treatment of the water purifying process . It's the important part of the water purify system .The mechanical filter can match with different filter material such as : Quartz sand ,Activated carbon , anthracite etc

Quartz sand/Activated carbon filter to remove the water is the most effective means of suspended solids, is deep treatment of wastewater, sewage reuse and water treatment in the important unit, its effect is will the water has flocculation pollutants further removes it through the filter material, the interception and adsorption effect settlement and, to the purpose of water purification.

Key Attributes

Model	Capacity(m3/h)	Inet valve	Outlet valve	Backwash discharge valve	Equioment Dia(mm)	Total height(mm)
AUMF3	3	DN32	DN50	DN80	800	4000
AUMF5	5	DN50	DN50	DN100	1000	4000
AUMF10	10	DN50	DN80	DN125	1200	4600
AUMF15	15	DN80	DN100	DN150	1600	4600
AUMF25	25	DN100	DN125	DN250	2000	4800
AUMF35	35	DN100	DN150	DN300	2400	4800
AUMF50	50	DN125	DN200	DN350	3000	5000
AUMF60	60	DN125	DN200	DN350	3200	5000

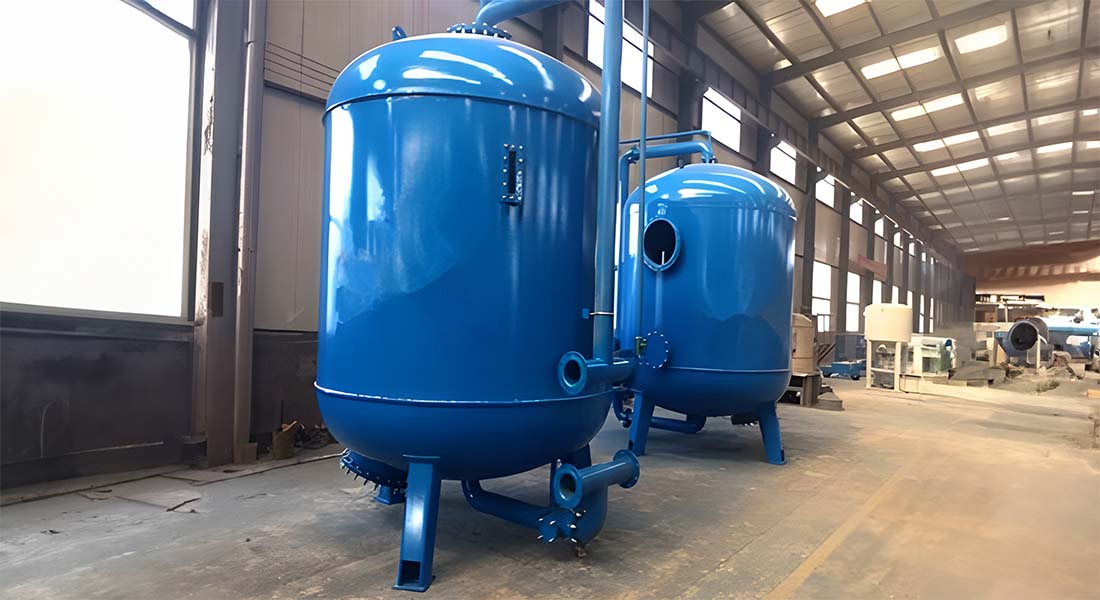

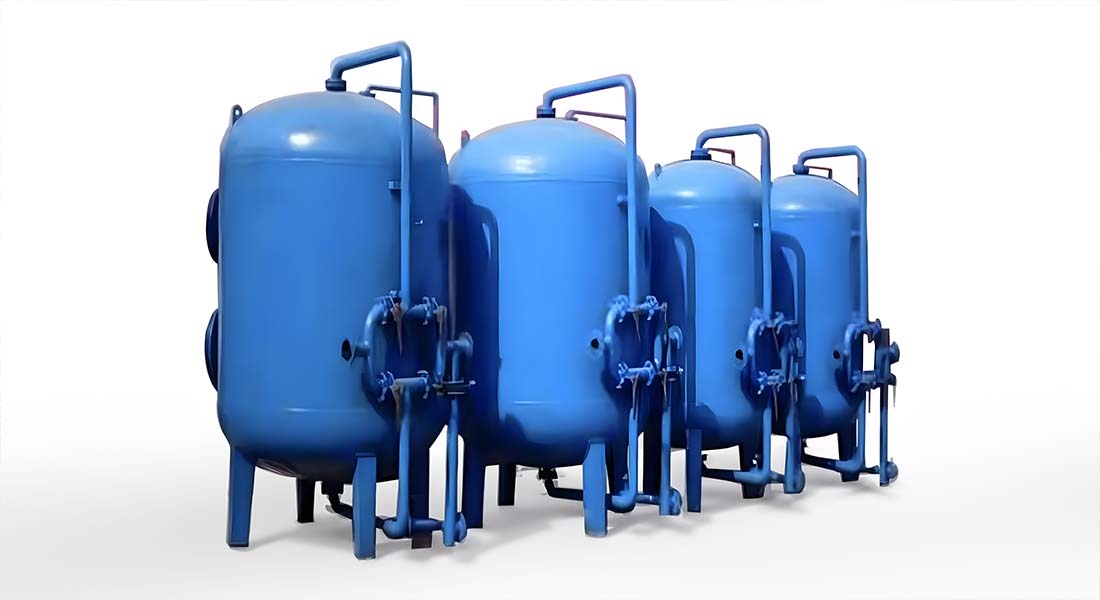

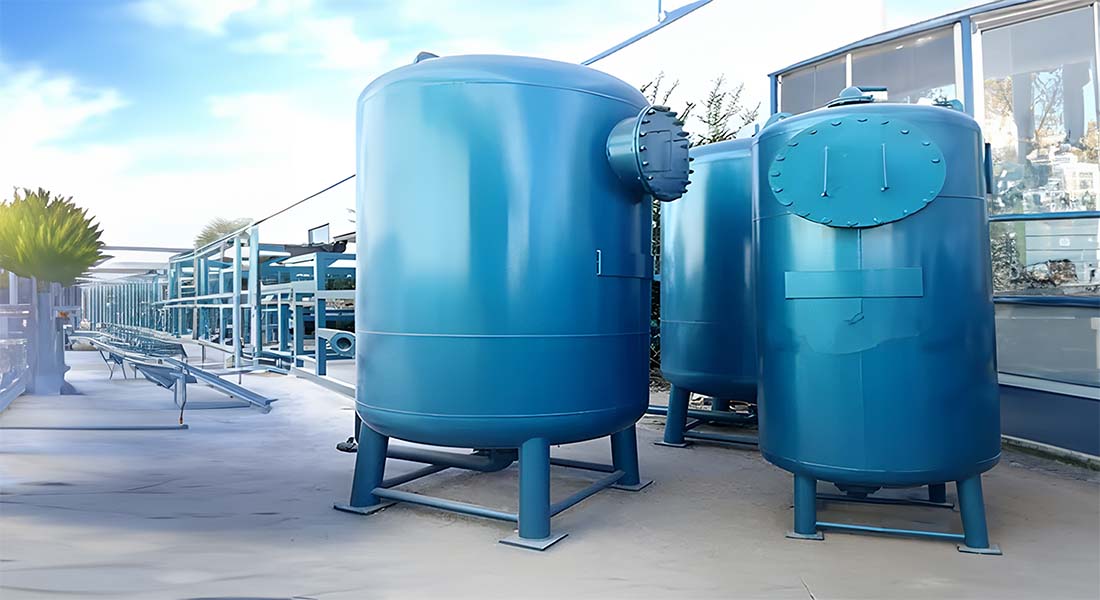

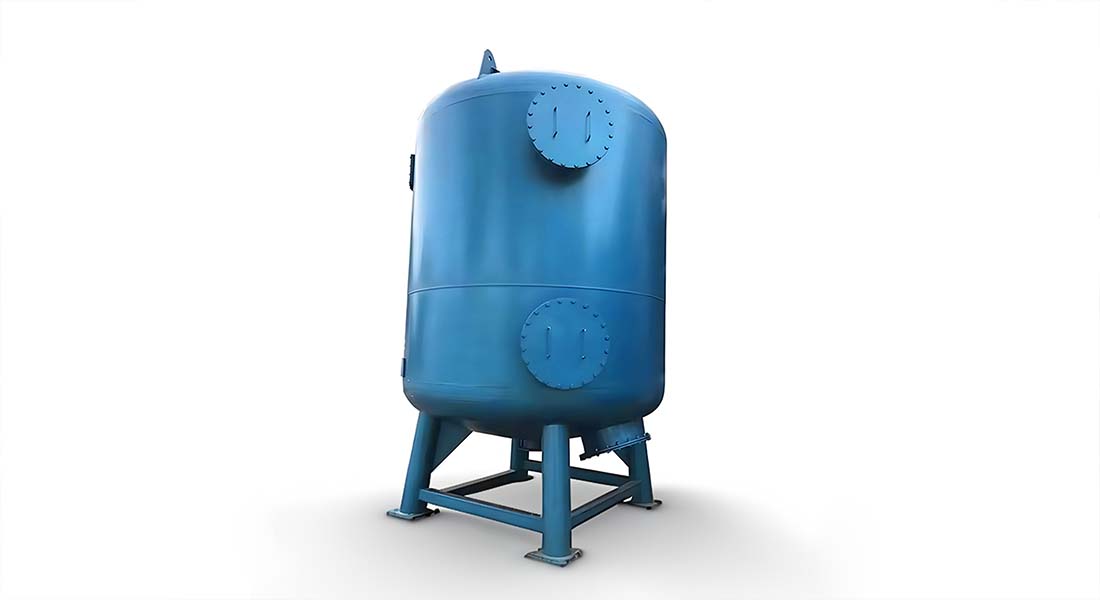

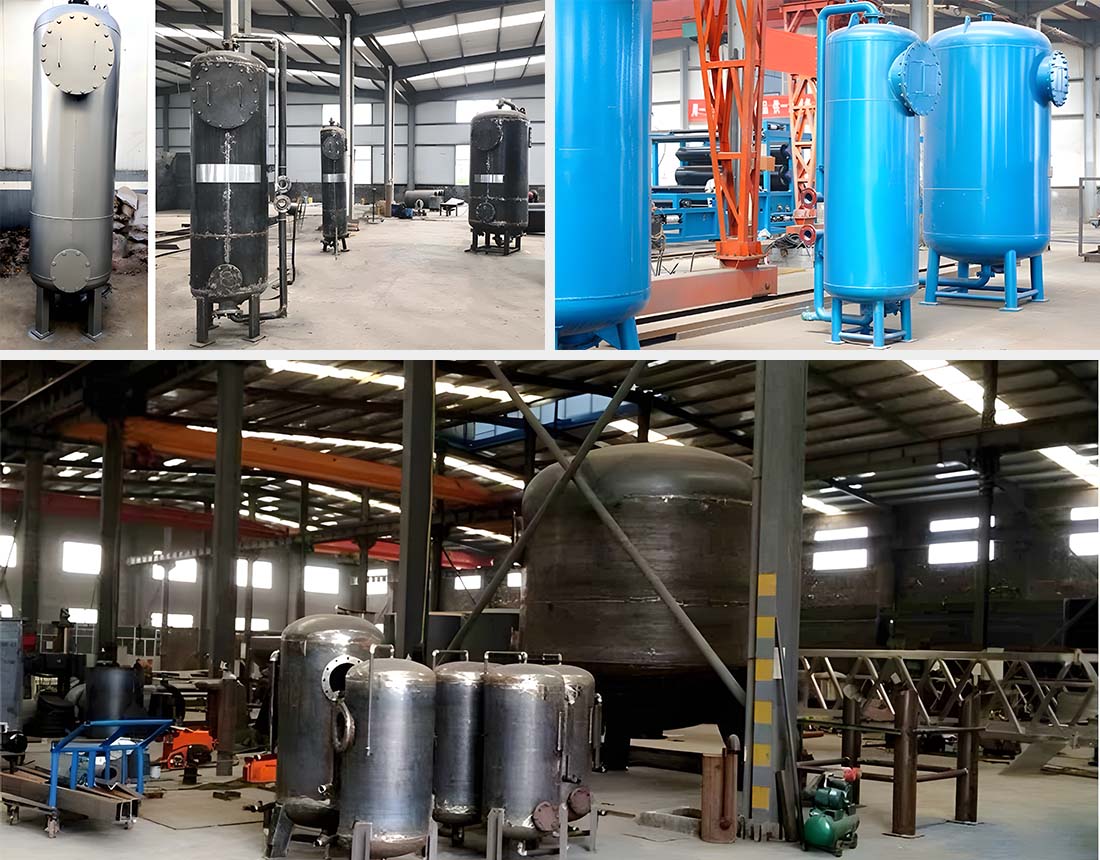

Product Display

Application & Characteristics

1Can used in the surface water ,underground water etc

2 Widely used in the electroplating , papermaking , food , drinking , swimming pool etc ;
can meet all kinds of liquid filter demand. Also used in water reuse system, swimming pool seawater treatment system depth filtration. for the industrial waste material also has good effect to remove.

3Low cost and operation cost , easy to maintenance

4Long filter material life time

5Good treatment effect and small occupy area

6Simple structure,convenient operation and maintenance, operation can achieve automatic control
